SPECIFICATIONS:
Model
1606A+
16CH Digital Video RecorderVideo I/F
Input
16 CH Input 1.0Vp-p,
75ohm unbalanced (BNC Type)Output
1 Output CVBS: 1.0Vp-p,
75 ohm unbalanced (BNC Type)Horizontal Resolution
480TV LinesS/N Ratio
More then 40dB Color
16.7 MillionMonitoring Method
Split Screen
1,4,9,16Zoom
Live & PB Available, x 2 zoomSequence
AvailableScreen Quality
Full: 720(H)x 480(V) Active Pixels(NTSC);
720(H) x 576(V) Active Pixel (PAL)
1/4 Screen: 360(H) x 240(V) Active Pixels(NTSC);
360(H) x 288(V) Active Pixels(PAL)Display Rate
480 frames per second (Real Time Display)Recording/Play Function
Recording (Max) NTSC |
0.1~60
Fields/Sec. (720 x480) Storage Media
IDE Hard DiskCompressed Picture
JPEGPicture Recording Method
Quad Screen RecordingField Switcher Method Full Screen RecordingREC.
Mode
Real-Time / Time-Lapse / EventTrack Play
Still, Back ward, Forward, Time, SearchOther Function
Simplex/ Duplex
SimplexMotion Detect
Area division: 16 x12, on/off sector selectable
sensitivity adjustment in 10 stepsWEB Interface
TCP/IP with client softwareAlarm
Max 16 Alarm Input / 2outputBack-Up
External Interface Back-up
Internal Back-Up (Mark Image)RS485
For Remote Controller x 2 (Dry Contact)Storage
Internal 1 Or 2 HDD (3.5 IDE Interface)
Optional HDD Bay Support
HDD Must be 7200 RPM
4HDD/1 Unit, Max. 3 UnitsPower Supply
DC Adapter (12V DC 5A)Audio Input
2 x InputsAudio Output
1 x OutputVGA Output
1 (Optional)Mechanical
Operation Temperature
41F~104F (5C~+40C)Operation Humidity
Less then 90%IR Remote Controller

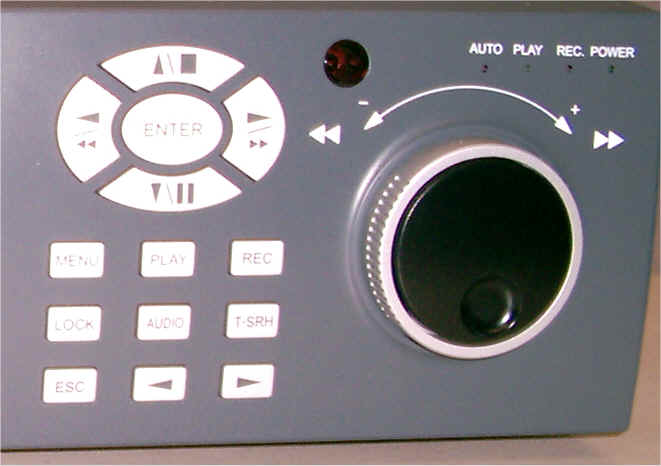

Build-InShuttle Control Input
X 1Weight
Approx. 5KG (HDD 1EA) HDD Bayer (optional)
External HDD BAYHard Disk Units
3.5" x 4 units, IDE interfaceMobile Rack
Removable Rack x 4 unitsDIP Switch
1, 2, 3Interface
External Interface x 2 (Input x, Output x 1)Power Consumption
40WPower Supply
110/220 Auto switchPower Core
220mm |
FEATURES:
Embedded HyRTK Operating System
M-JPEG Compression Format
Resolution: 720x480(Recording), 720x480(display)
Recording Mode Selectable: Manual, Continuous, Alarm, Schedule
16 Channels Video Input
Recording Type: Quad/ Multiplexer
FPS: 60fps (Field)
Time-Lapse Recording Support
IR for Remote Control
RS-485 for Remote Controller
Alarm In/Out Support (16 In/ 1 Out)
Password Protection
Extremehard DiskBay (Optional)

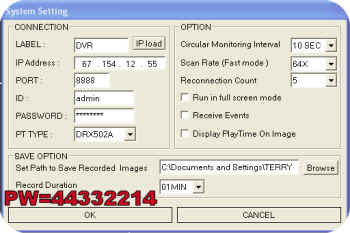

LanPort for Remote Viewing via TCP/IP
Remote Viewing, Save one Image, Printing Image
Audio: 2 x Inputs, 1 x Output
VGA Output: x 1 (Optional) |
