You are here> Home> Cameras> Digital Video Recorders>4 Channel Package>

J2K DVR Package Deal
This page assumes that you already know about all the features that the JPEG2000 DVR has to offer.
If not click (here) to learn more about the DVR. Anew window will open.


This a limited time offer designed to eliminate our overstocked!

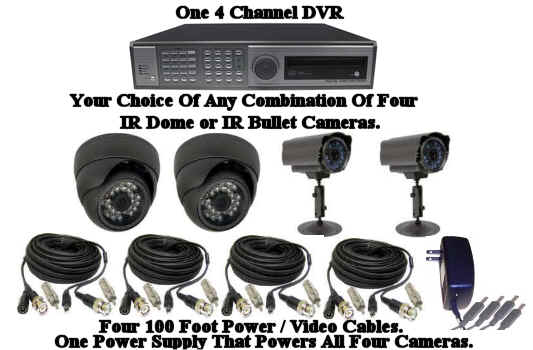

This is what you get in this package deal
Our JPEG2000 Pro Quality DVR System
With a 250 gig Hard Drive Preinstalled for you

You get any combination of the cameras listed below>
You can get three domes and one bullet
Or you might want three bullet and only one dome.
Mix and match them anyway you want! The choice is yours!



Everything you need right out of the box.
Total Package: $999.00
Call 888-724-1641 to order.
Package Name: J2K-4-MIX







Front View

Back View of The 4 Channel JPEG2000 DVR
Click on image below to
SUPER SIZE IT AND SEE THE LEGEND

JPEG2000, G4-X4CD, DVST-4030, DVST-4060, DVST-40AU, DVST-8060, DVST-1660, DVST-80CD, DVST-16CD, eyemax
Offering four channel functionality without sacrificing quality.
Loaded with features!
This unit features a CD writeable drive for data transfer and backup.
Record up to 15 minutes with a 700MB CD-R.

JPEG2000 is the next generation of image compression.

Yielding much higher compression ratios than its predecessor MJPEG, JPEG2000 does not sacrifice video quality. In fact, playback recording and live views are nearly identical. JPEG2000 has been developed specifically for multimedia. Unlike MPEG-4, JPEG2000 was designed with the entire CCTV scope in mind. Rather than just fluid Internet viewing, JPEG2000 does an excellent job with multiplexing, printing, scanning, mobile applications - features that are integral for the broader CCTV environment. Other features of JPEG2000 include superior low bit-rate performance, lossless and lousy compression, progressive transmission by pixel accuracy and resolution, robustness to bit errors and many others as well. Enjoy the benefits of the industry leading compression algorithm
JPEG2000.

Live View

Real time display per camera
Auto Sequence
PIP (Picture in picture)
Digital Zoom
Display Freeze
Simple Playback mode
Simple PTZ camera control


Record

High Frame Rate (120 ips Max)
Variable Record resolution (For higher picture quality or higher recording speed)
Efficient Image Quality setup in 5 steps
Schedule Record / Holiday Record
Event Record (Alarm / Motion)
Emergency Record

Network

View Live and Playback images across IP network
Copy images across the network

Playback

Search & Playback by Date/Time, Event, Camera
Outstanding picture quality by JPEG 2000 compression algorithm (No mosaic effect)
Suitable for recording not only images but also text
Various steps in Forward Playback Speed (X1/4, X1/2, X2, X4, X16, X60)
Various steps in Backward Playback Speed (X1/4, X1/2, X2, X4, X16, X60)
Easy and convenient search by Jog Shuttle & Remote Controller

Data Back-Up

Simple Back-Up using built-in CD Writer (Back-up CD Player included in the package)
Network Back-Up using Remote Viewer program(Remote Viewer included in the package)
Supports large capacity  HDD (300GB or larger)

Others

Multi-Language (English, Spanish, Portuguese, German, French, Italy, Japan, China)
VGA support both TFT LCD monitor and CRT monitor (option)
Lock the system by Password
JOG / SHUTTLE
PAL/NTSC Auto detection
Control the unit by using Remote Controller
MODEL NO
G4-4XCD J2K Stand Alone DVMR

Multiplex Function

Triplex

Storage Capacity
Internal
HDD

Up to 2 HDDs, 7200RPM, IDE, no capacity limitation

CD-RW
CD-R Media Only (Can be replaced with 3rd HDD)
Video
Inputs
Composite
4 Channels (BNC)
Outputs
Composite

2 Channels (Monitor / VCR)

VGA

1 Channel (Supports TFT, LCD, CRT)

Loop Out
4 Channels (BNC)
Compression
J2K
Display Speed
Real Time Display
Recording Modes
Continuous, Motion, Schedule, Alarm
Search
Event, Date-Time, Jog-Shuttle Search
Recording Speed
60 fps (720x240), 120 fps (360x240)
Multi-Language
English, Spanish, Germa, Itilian, French
Switching Interval
1 - 99 Seconds (Selectable)
Live Screen Division

1 Full Screen, 4-Split Screen

Digital Zoom, Freeze Function, PIP available in Live Mode
Alarm

Inputs

4 Alarms (NO/NC Selectable in Setup Menu)
Outputs
1 (NO/NC)
Post Alarm
Duration of alarm output 1sec - 59sec selectable
Motion Detection
Area Division: 16 x 12 / Detection Division: 32 x 24
Network
Ethernet (TCP/IP), Remote Client Software Included
Web Access available with BlueNet NVS-DVR add-on
Backup
VCR, CD-R Backup, Download via IP Network
PTZ Control
RS-485, Multi-Protocol, Multi-Baud Rate, User Selectable
Firmware Upgrade
USB Port for Firmware Upgrade, CD-R
Serial I/F
RS-485
PTZ Camera Control
RS-232
Operation Via RS-232 Device
Power Requirments
DC 12V / 5A Adapter (2 x Included for high capacity HDD)
Weight
8.5kg
Dimensions (W x H x D)mm
436 x 396 x 88
Packaging
600 x 520 x 180
