A very welcome
addition to the Basic model. Now it's no longer necessary to physically
connect to the tracking module in the vehicle to download the
data from the logger / tracker. With the addition of radio
hardware & software your vehicle's tracking information is
now automatically downloaded through the radio when the
vehicle gets within range of the wireless PC interface. Obviously
this is a huge convenience over actually having to physically
connect to the logger / tracking unit.
|
Radio Download Tracking System

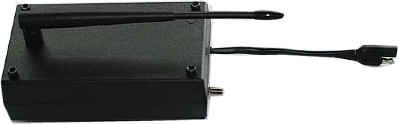

(Left) Vehicle tracking unit. (Right)
GPS Antenna
|

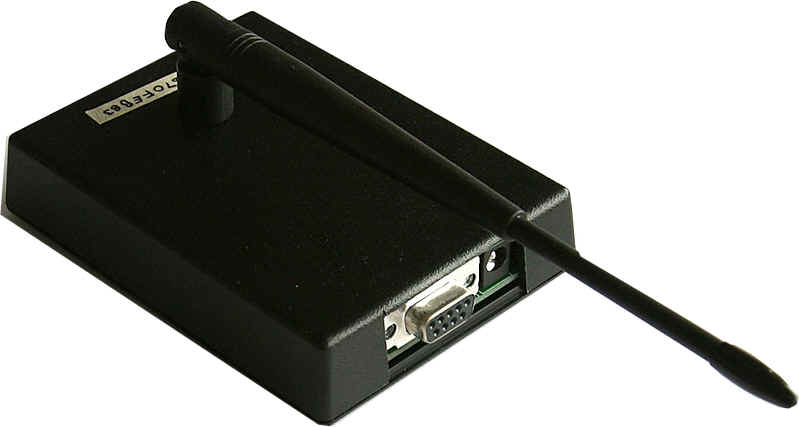

(Above) Wireless PC Interface |
Your purchase includes:
One Data Logger Module (Top left)
One PUK GPS antenna (Top right)
One RF modem wireless interface (Left)
One DB9 to DB9 Data cable (Connects modem to computer)
One Power connector to connect the tracker to vehicle power.
One Software CD with mapping and reports programs.
Complete set
$775.00 - SKU-17300
|
|
|
 |
Additional RF Tracking units, Includes antenna
$575.00
SKU-17301
|
|
|
 |
Additional RF Modem & Software
$200.00 SKU-17302
|
|
|
One modem can track
multiple logger / trackers at on time. So this system is
expandable.
Data will automatically download when unit comes within range
of the modem unit. (Software must be running)
The tracking systems come in two versions. One is
designed for Fleet Management (Non-Covert) and is designed to
be connected to the vehicle to get its power.
The other is the (Covert) version and runs on a separate
battery that will power the unit for about 5 days. By default
you will get the Fleet Management Version. The Covert version
is $45.00 more. For now you will have to call to purchase the
covert version. The Fleet version is what we are selling on
this web page.
Each Logger / Tracking unit has an ID number that you enter
into the software during setup that lets the software differentiate
one vehicle from another.
For:
Investigators, Fleet Management,
Law Enforcement, Rental Vehicles, Infidelity, Teenage Driver
Safety.
Features:
Radio transmitter for data communication
Stores over 12,000 Positions In Log
Completely self contained
16 channel parallel GPS receiver
Non-volatile memory saves information even if batteries run out

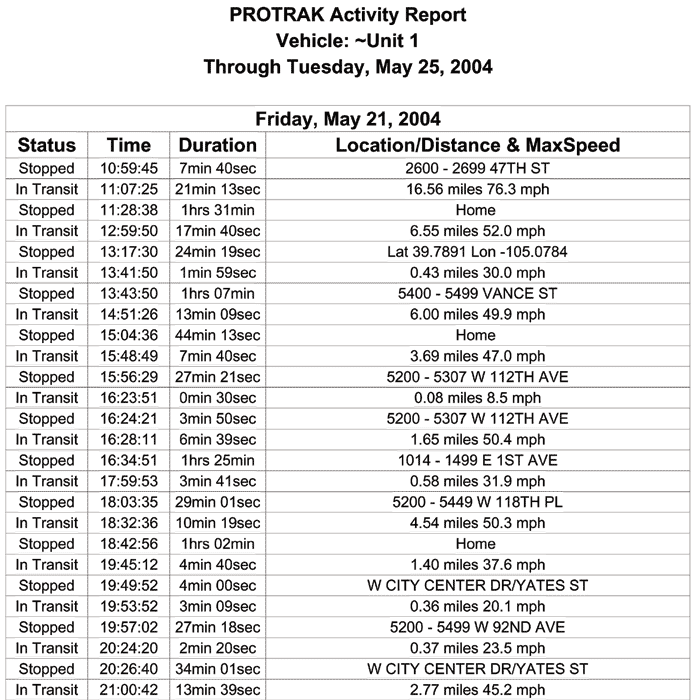

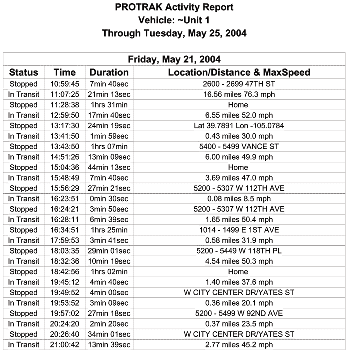

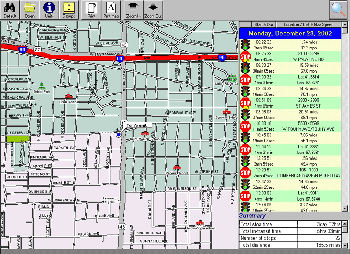

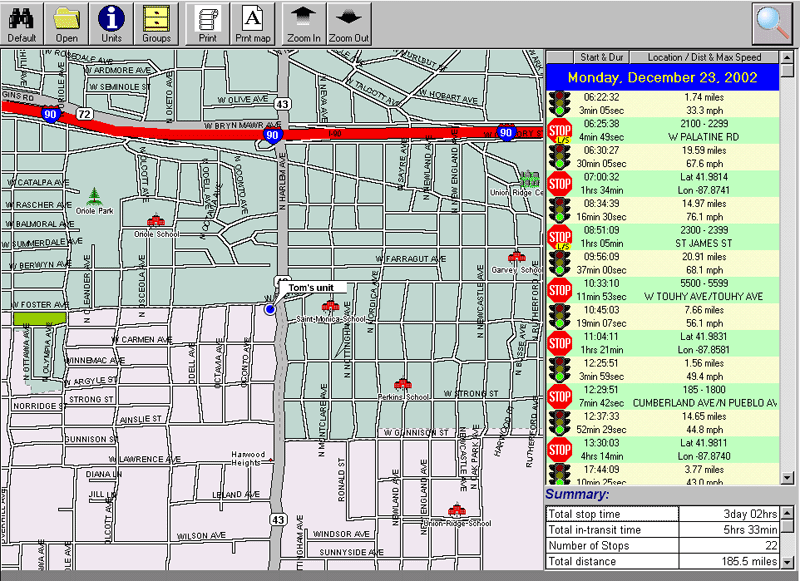

Downloads to mapping software (U.S. maps included; specific maps of Canada and Latin America available upon request)
Display vehicle location, speed, heading, lat/lon and time at remote location
Covert unit operates on 4 C batteries in external battery pack
Fleet version operates off the vehicle's 12-volt power
Small size: 3" x 5" x 1.5"
Weatherproof package designed to look like car electronics
Built-in motion detector to conserve batteries
Adjustable data recording rate - Takes a reading every 10, 20, 30 or 60 seconds
Data recording rate can be changed remotely via the RF interface
software
All components are Magnetic mount for easy installation
Click on images below for larger view. A new window will open.
Note:
Protrak RF Scout tracking
function depends GPS visibility in sky. GPS visibility may be
blocked between tall buildings, or by land features.
|
