WDT-2016
SKU-16120 and 16240 DVR card System

You are here> Home> DVR Cards>  SKU-16120 DVR & 16240 DVR Cards




See the bottom of this page for more detailed photos of this system.

Model 16120
$ 399.00 - Quantity:

Model 16240
$550.00 - Quantity:

Key Features:
Records at 120 or 240 fps depending on the model you get. 4 or 8 channels of audio depending on the model you get.
Records at resolutions up 640 X 480, MPEG4 Compression NTSC. All video is time and date stamped.
Browser and Client remote access. (The best remote interface we have ever seen in a DVR) Call for DEMO.
Free technical support for 15 days from date of purchase. Resellers & Installers call for special pricing.

System requirements:
Windows XP - Will run on 98SE but will perform poorly, do not use Windows ME.
P4P800-SE Mother board with 865PE Chipset
will not run on an AMD
computer.
Will not run on 915 chipset computers.
Pentium 2.4GHz or better for best results.
512 Meg RAM - More is defiantly better
ATI AGP graphics card with at least 128 Meg of RAM more of course is better.
Direct-X version 7.0 or Higher - Screen resolution must be 1024x768
You will need to either make a separate partition or add a 2nd hard drive to store video.
This is a requirement in the software.
Recommended Motherboard: Asus P4P800-SE 865PE Chipset
We never recommend using Dell computers
We buy our computers from Ken at www.ezstation.com. If you purchase a computer form Ken he will deliver it to our office and we will install the DVR card, test and ship the system to you ready tested and ready to go out of the box.

Features Include:

Recording Mode
Video Motion Detection - Can be set to record only when there in movement in front of the camera. Can also be set to record continually 24 hours a day. Can be set to record only on EVENT when alarm inputs are triggered Has pre-alarm feature letting you see what happened just before the alarm was triggered. Can be set to continues recording with motion detection and by flexible schedule.

Video Quality
I have to admit that this is probably the clearest Digital Video Recording that I have ever experienced. Our installers and customers describe the image quality as Stunning! Even through its browser or client remote access the video quality is outstanding. When you combine this system 648X480 recording capabilities with a quality camera the clarity is unbelievable.

MPEG4 video compression
Unlike other systems that use Wavelet or MJPEG, MJPEG2, H.263 and H.324 this system uses MPEG4 which stands for Motion Pictures Expert Group and is the highest quality of all the compressions listed here.

Digital Watermarking
When you export video from this system you can select to have it digitally watermarked. This is an important feature when it come to using your video for prosecution. It ensure that the exported video has not been tampered with or edited.

Multi Level Password Assignment
Of course the system administrator has complete access to all features. Each new user ID and password created by the administrator can be assigned different levels of access just about all aspects of this system. For example you can limit the cameras that a specific user is able to see. That's just one example of many options that can be set per user.

Web Based Server For Remote Viewing
This system can be setup as a video web server allowing remote access to the cameras without having to carry any software with you. Simply use the browser on just about any computer to connect to the server and you ready to go. Work with both static IP address and Dynamic IP addresses. You can require users to have a log in or simply leave the camera wide open.

Client Based Server For Remote Viewing And System Control
The Client based remote access interface program allows you to view al the cameras and gives you complete control over all the server functions as if you were standing in front of the server. You can even play back recorded video thought the remote client including audio..

Video Controls
Each of the cameras recording speed, viewing speed and image quality can all be individually adjusted. Video can also be controlled using in comprehensive scheduling tools. Even the audio controls can be individually controlled.

Record time
As with any DVR system record time varies depending on how you configure the software and the amount of hard drive storage space that is allocated to the DVR. These systems are designed to record continually. When the allocated hard drive space has all been used up the system can be set to push off the oldest video to make room for the new. Depending on your systems configuration you can record literally thousands of hours. The more HD space the more time.

Recorded Video Playback
Recorded video can be played back locally or through he remote client software. During playback you can zoom in on the reordered video. You also can adjust the sharpness or blurring of the on screen image to get the best image for printing or exporting.

Multiplexing
Unlike most other systems out there with this system you can play back previously recorded video while still recording. The recording doesn't stop when video is being played  back through the remote client either. Your always covered!

P/T/Z control
Each camera can be setup to the with different types of PTZ cameras. Each PTZ camera can be controlled both from the server PC or through the remote access client software using the onscreen PTZ control buttons.

Video Out
Each card has one composite video output. In the software you can control which cameras are displayed through the video output. You can set the output to continually display one camera or have it rotate through all the cameras one by one and you can adjust how log it displays each camera before going to the next.

Software Note:
We buy the hardware for these systems from an overseas manufacturer. They do not come with software from the manufacturer. How ever we are including a basic software package that will perform all the functions listed above. It's good stuff! In fact we are now using this system in our business..

Model: 16120   16 channel DVR card system that records and displays at 120 frames per second
Camera Inputs 16 - Pig-Tail with BNC inputs
Display 120 fps
Record 120 fps
Screen division options 1,4,7,9,16 splits
Sensor Inputs (Optional) 16
Alarm Inputs (Optional) 8
Recording resolution options 640 x 480 or 640 x 240 or 320 x 240
Video output quality 5 Quality Level (low, very low, medium, high, very high)
File Size 2 ~ 4KB (320 x 240, Medium level)
Compression MPEG4
TV resolution Over 400 TV Line(1 screen)
Network LAN, Cable modem, ISDN, PTSN,  PPP (Dial Up)
Audio Inputs 4
Pan / Tilt RS232 (PAN / TILT / Zoom / IRIS)
TV out Yes
AVI Back UP Yes
Watch Dog Yes
Model: 16240   16 channel DVR card system that records and displays at 240 frames per second
Camera Inputs 16 - Pig-Tail with BNC inputs
Display 240 fps
Record 240 fps
Screen division options 1,4,7,9,16 splits
Sensor Inputs (Optional) 16
Alarm Inputs (Optional) 8
Recording resolution options 640 x 480 or 640 x 240 or 320 x 240
Video output quality 5 Quality Level (low, very low, medium, high, very high)
File Size 2 ~ 4KB (320 x 240, Medium level)
Compression MPEG4
TV resolution Over 400 TV Line(1 screen)
Network LAN, Cable modem, ISDN, PTSN,  PPP (Dial Up)
Audio Inputs 8
Pan / Tilt RS232 (PAN / TILT / Zoom / IRIS)
TV out Yes
AVI Back UP Yes
Watch Dog Yes

*** Check out our package deals for these DVR systems here ***

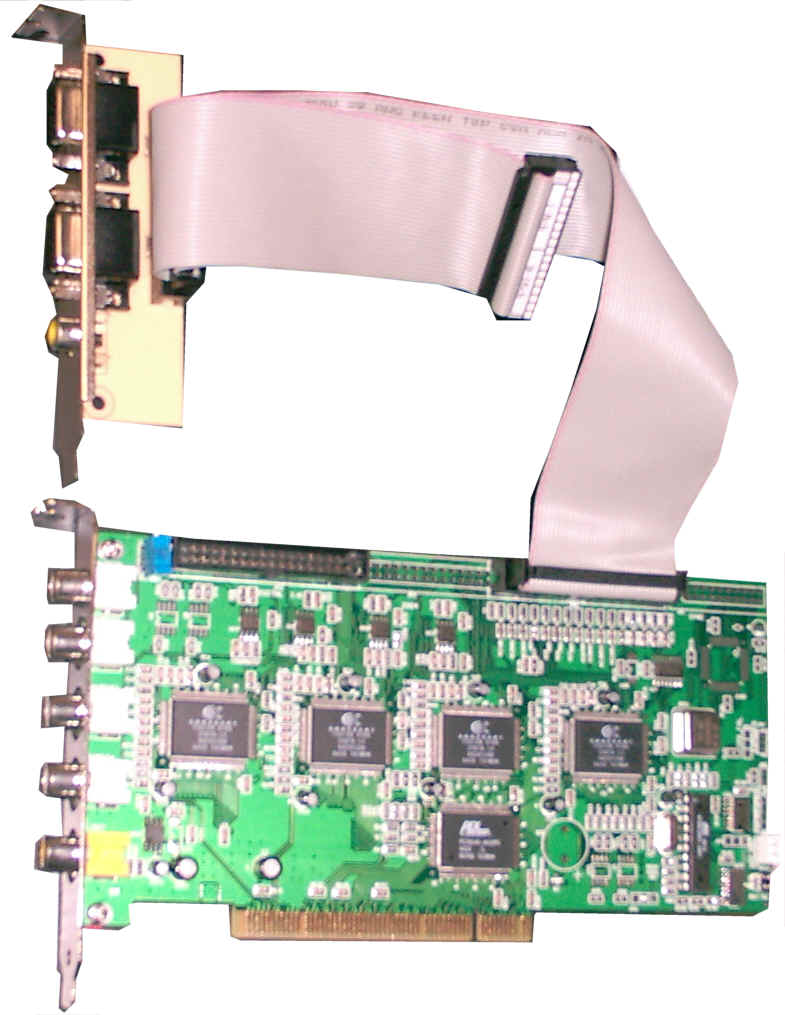

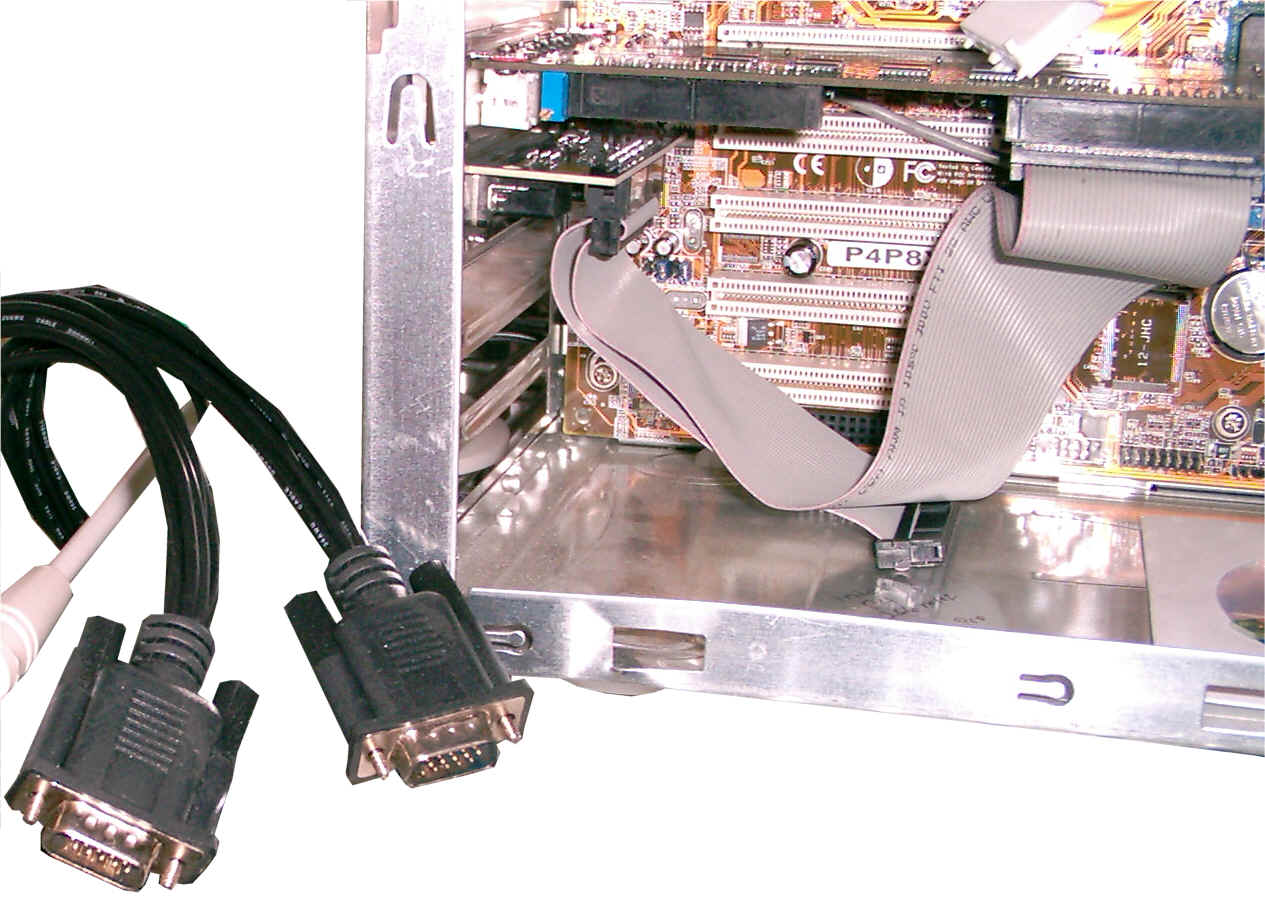

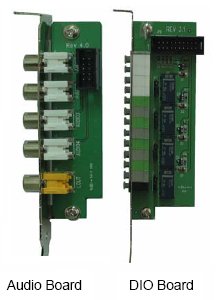

Optional Rear PC Mount Video Input and IO input for alarms $99.00
We don't have any other IO input contact setup at this time.

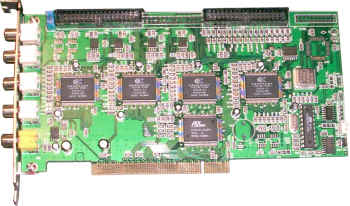

By default this DVR cards come with the standard 16 channel pigtail type inputs not shown on this page.

Note: If you click on the Web Demo Link there will be a long pause. At some point a Windows warning will pop-up. (You may also need to disable you pop-up blocker) You must say YES to allow the demo to be installed. The warning will say something like "Not digitally signed" Just ignore it and keep going.

WEB DEMO
Please note that the Web Demo will be turned off often for various reasons. If it's not up please call 214-572-0361 and we will turn it on.

Also note that the Web Demo only demonstrates the web based access that this system offers.


It also comes with a remote client that is loaded with remote features. In fact the remote client offers virtually complete control over all the features that the entire DVR system has to offer as if you were operating the system from the server. Awesome compared to most DVR systems we have seen in the past.

wpe1FF.jpg (73685 bytes) wpe201.jpg (124070 bytes) wpe203.jpg (70915 bytes) 16120-video-dio-bays.jpg (14113 bytes)
